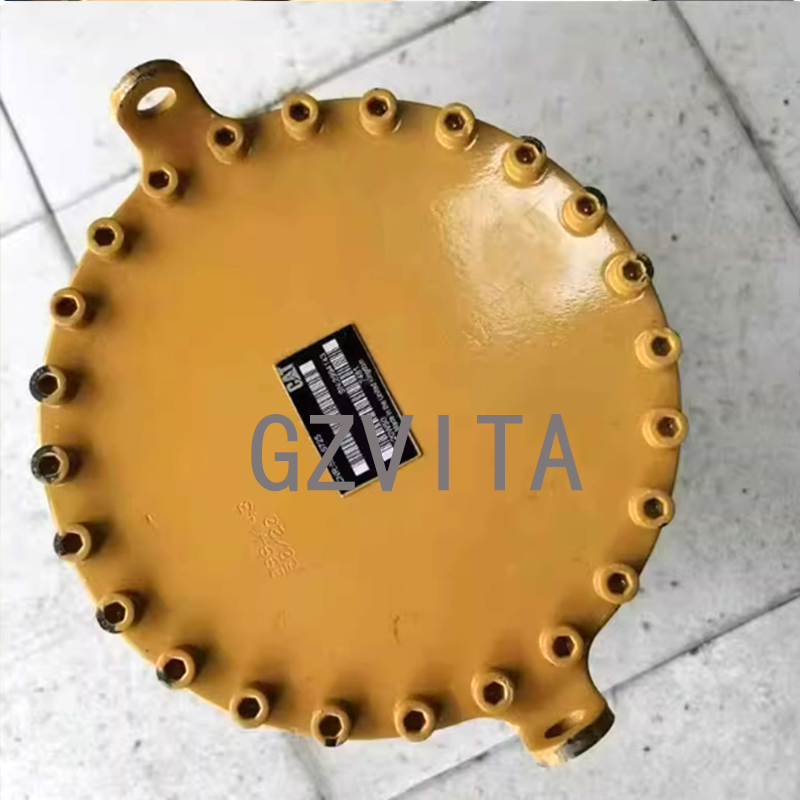

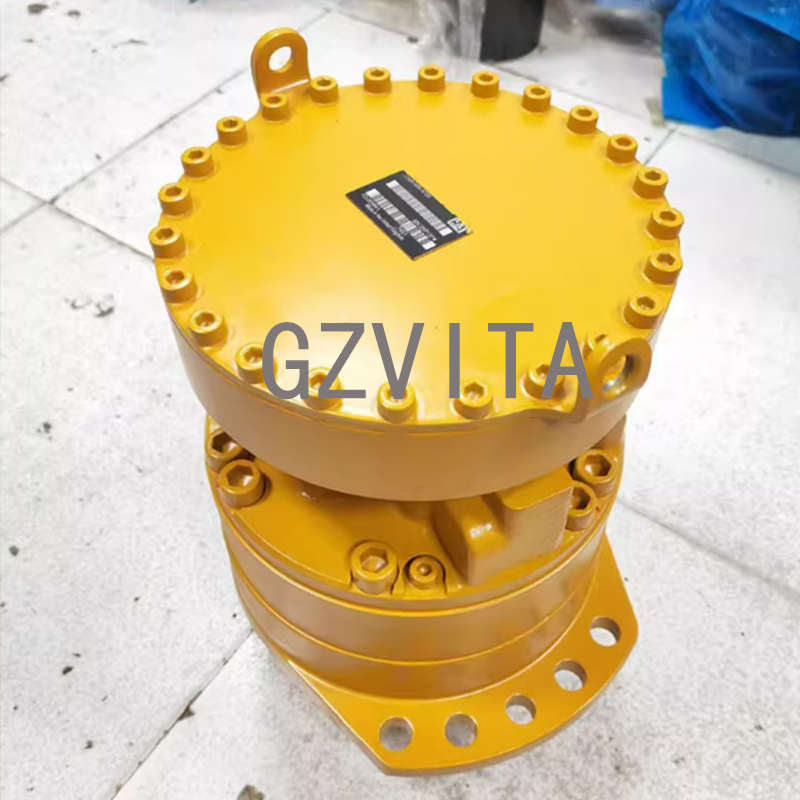

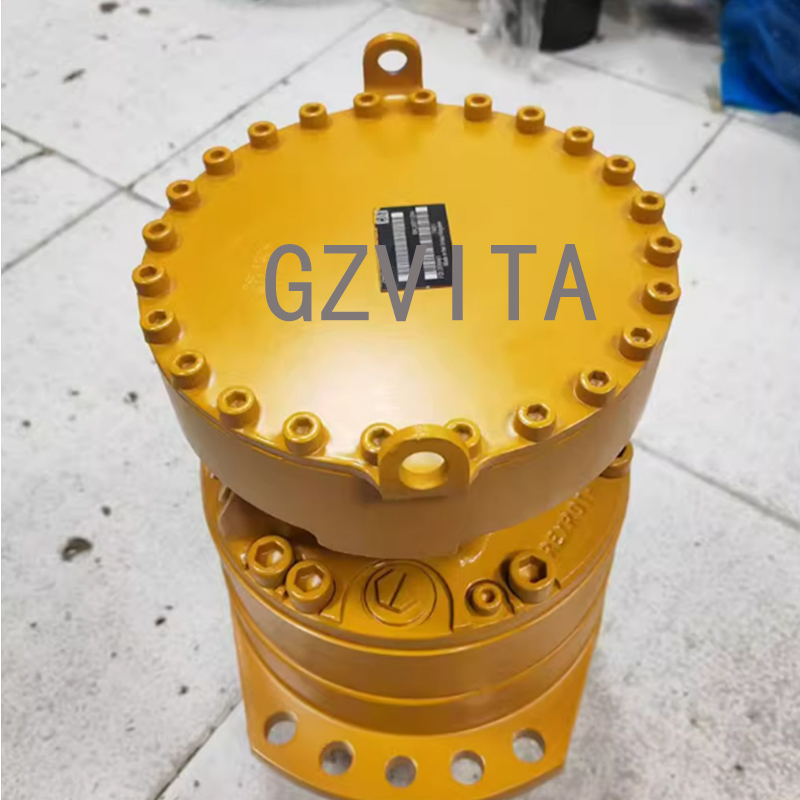

Original Excavator Hydraulic Swing Motor for CAT 307 307.5 308 309 310 487-6234 589-5725 487-6240

Axial piston design - Utilizes pistons arranged parallel to the drive shaft axis.

Swashplate mechanism - A tilted plate converts piston reciprocation into shaft rotation.

Variable displacement - Swashplate angle can be changed to alter piston stroke and flow.

Hydraulic motor - Converts hydraulic fluid pressure and flow into rotary mechanical power.

High-torque, low-speed motor - Designed to directly drive the swing gear without a speed reducer.

Two-port operation - Features an "A" port and "B" port for forward and reverse flow.

Pressure differential - Rotation is created by applying higher pressure to one port.

Swing brake valve - An integrated valve to hold the upper structure stationary.

Mechanical parking brake - Spring-applied, hydraulically released fail-safe brake.

Pressure relief valves - Protects the motor from excessive inlet or case pressure.

Cross-port relief valves - Limits torque by allowing flow between high and low-pressure sides under shock loads.

Case drain port - Returns internal leakage oil to the tank to prevent seal damage.

Slipper pads - Attached to piston ends, they ride on the swashplate surface.

Cylinder block - Rotating component containing the piston bores.

Valve plate - Stationary part with porting to direct fluid to and from the piston chambers.

Check valves - In the brake release circuit to maintain brake piston pressure.

Anti-cavitation function - Relief valves or makeup valves prevent void formation during deceleration.

Counterbalance valves - Often used in the external circuit to prevent uncontrolled swing.

Pilot-operated check valves - Locks fluid in the motor to hold position securely.

Shaft rotation - Output shaft is splined to connect to the swing pinion gear.

Displacement control - Swashplate angle is controlled by a servo piston (in variable models).

Servo piston - A small hydraulic piston that moves the swashplate.

Control valve linkage - Mechanically connects the operator's lever to the servo control.

Port timing - The valve plate is precisely machined to align ports with piston chambers.

Pressure feedback - Some systems use load pressure to adjust displacement for power limiting.

Hydraulic braking - Motor can act as a pump during deceleration, converting inertia into heat.

Gerotor-type flushing valve - Manages case drain flow and cooling.

Smooth start/stop - Achieved through metered flow and brake valve timing.

Swing priority system - Diverts hydraulic flow to the swing circuit when commanded.

Load-independent flow control - Maintains a constant swing speed regardless of load.

Tapered roller bearings - Supports the output shaft under heavy radial and axial loads.

Piston seals - Dynamic seals that contain pressure within the piston bores.

Case pressure limitation - Critical to prevent shaft seal blow-out and housing damage.

Swing drift prevention - Tight internal clearances and holding valves minimize upper frame creep.

Thermal expansion compensation - Designed clearances account for component heating.

Pressure intensification prevention - Proper circuit design avoids trapped oil pressure spikes.

Efficiency optimization - Designed for high volumetric and mechanical efficiency.

Shock load absorption - The hydraulic fluid and relief valves cushion sudden load impacts.

Rotation direction - Determined by which port receives pressurized flow.

Speed control - Governed by the flow rate from the main control valve.

Torque output - Proportional to the displacement and the applied pressure differential.

Power input - Calculated as flow rate times pressure drop across the motor.

Kinetic energy dissipation - During braking, inertia is converted to heat in the hydraulic oil.
