345D 345C Excavator Joystick Hydraulic.png

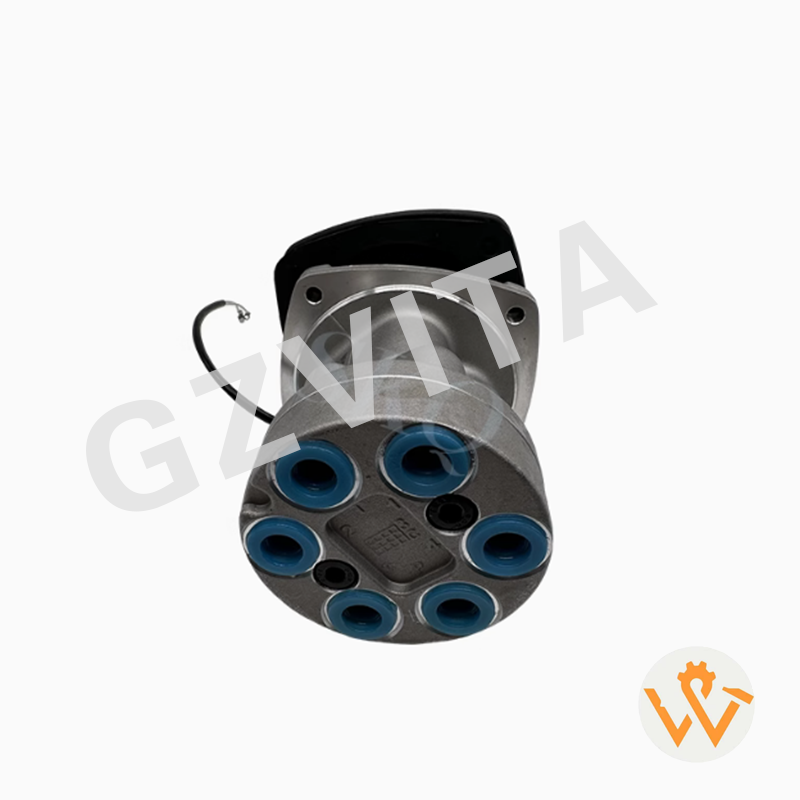

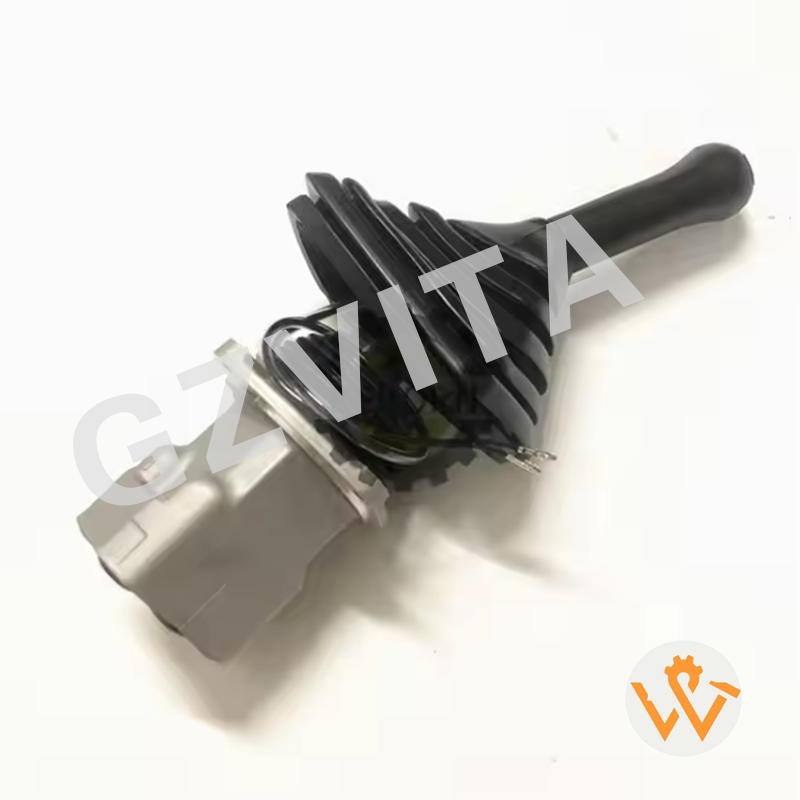

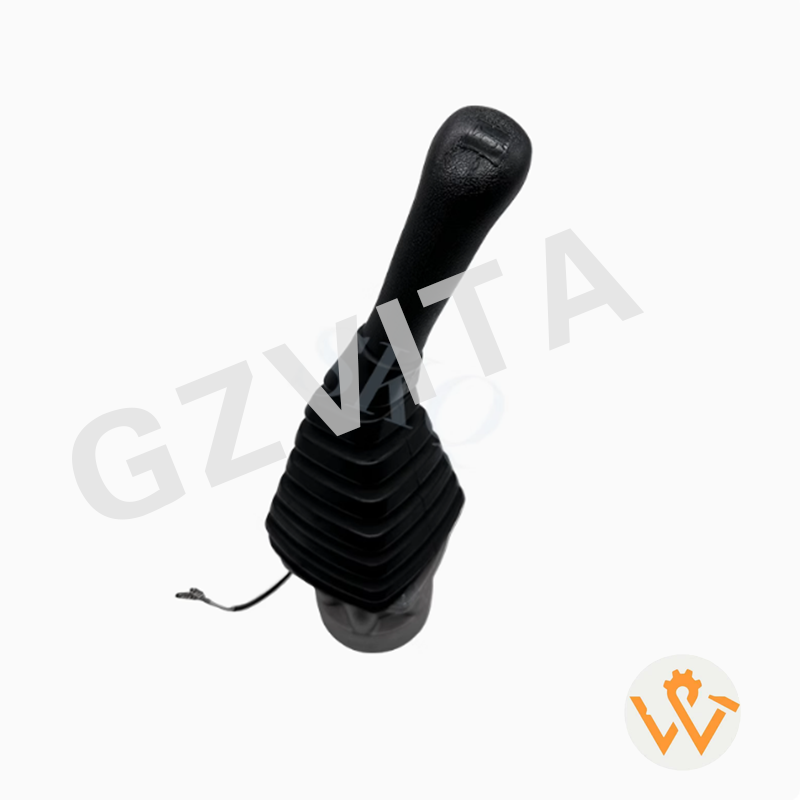

206-3305 297-0529 297-0589 E320C 330C 330D 329D 336D 345D 345C Excavator Joystick Hydraulic

Smooth, gradual input – Avoid jerky or sudden lever movements.

Neutral position awareness – Return levers to center when not in use.

Gentle pressure application – Use minimal force for precise control.

Two-handed operation – Operate both levers simultaneously for combined functions.

Palm grip technique – Use an open-palm grip, not a tight fist.

Avoid lever slamming – Never force levers against their mechanical stops.

Lever customization – Adjust lever tension and length to personal preference.

Periodic inspection – Check for looseness, damage, or unusual resistance.

Cleanliness maintenance – Keep levers and the area around them free of mud and debris.

Seal integrity check – Ensure protective boots are not torn to prevent contamination.

Electrical connection care – For electronic joysticks, ensure connectors are secure.

No leaning on levers – Do not rest hands or arms on the levers during breaks.

Proper warm-up operation – Use gentle movements during the initial warm-up period.

Attachment-specific handling – Adapt control style for different tools (e.g., breaker vs. bucket).

Control pattern familiarity – Know your pattern (ISO, SAE, or manufacturer-specific).

Hydraulic response feel – Learn to "feel" the machine's response through the levers.

Simultaneous function practice – Master coordinated movements for efficiency.

Grade operation technique – Use subtle inputs for precise grading and leveling.

Travel-alignment awareness – Ensure travel lever is centered for straight-line movement.

Safe shutdown habit – Place levers in neutral and engage safety lock before exiting.

Cold weather consideration – Be aware of stiffer hydraulic response in cold conditions.

Avoid excessive force – If resistance is met, stop and check for obstructions.

Fine control for trenching – Use small, precise inputs for accurate trench work.

Lever mode knowledge – Understand if your machine has different control modes (e.g., SP).

Pilot system dependence – Recognize that lever effort controls pilot pressure, not main flow.

Ergonomic adjustment – Adjust the seat and console so levers are comfortably reached.

No riding the controls – Keep movements intentional, not constant resting on levers.

Attachment change procedure – Follow safe steps, often involving lockout, when changing tools.

Emergency stop readiness – Know how to quickly neutralize all functions.

Slope operation caution – Use extra care and slower movements on slopes.

Product Details

How to Use the Excavator Control Switch Panel

The control switch panel in an excavator is essential for operating various functions and systems of the machine. While the layout and specific controls may vary between different models and manufacturers, the following general steps will guide you on how to use the excavator control switch panel effectively:

1. Familiarize Yourself with the Control Layout
Before operating the excavator, take time to familiarize yourself with the control switch panel. Identify the various switches, levers, and buttons, and understand their functions. Common controls include:
Engine Start/Stop Switch: For starting and stopping the engine.
Hydraulic Control Levers: For controlling the boom, arm, and bucket.
Travel Controls: For moving the excavator forward, backward, and turning.
Auxiliary Controls: For operating additional attachments (e.g., hydraulic hammers, grapples).

2. Starting the Excavator
Ignition Switch: Use the ignition switch to start the engine, as previously described. Ensure that all controls are in neutral before starting.
Pre-Operation Checks: Before starting, check the control panel for any warning lights or indicators that may signal issues with the machine.

3. Operating the Hydraulic Controls
Boom Control: Use the appropriate lever to raise or lower the boom. Typically, pushing the lever forward raises the boom, while pulling it back lowers it.
Arm Control: Control the arm’s movement using the designated lever. Pushing it forward usually extends the arm, while pulling it back retracts it.
Bucket Control: Use the bucket control lever to open and close the bucket. Pushing the lever forward typically closes the bucket, while pulling it back opens it.

4. Traveling the Excavator
Travel Controls: Use the travel levers or pedals to move the excavator. Typically, pushing the left lever forward will move the machine forward, while pulling it back will move it backward. The right lever may control the turning direction.
Speed Control: Some models may have speed control settings that allow you to adjust the travel speed.

5. Using Auxiliary Controls
If your excavator is equipped with auxiliary hydraulic controls for attachments, familiarize yourself with the specific switches or levers that operate these functions. Ensure that the attachment is properly connected before use.

6. Monitoring Indicators
Continuously monitor the control panel for any warning lights or indicators while operating the excavator. Address any alerts immediately to prevent damage or unsafe conditions.

7. Shutting Down the Excavator
When finished, return all controls to the neutral position. Use the engine stop switch or ignition switch to turn off the engine. Ensure that the machine is parked safely and securely.

8. Refer to the Operator’s Manual
Always refer to the specific operator’s manual for your excavator model for detailed instructions, diagrams, and safety information related to the control switch panel.
