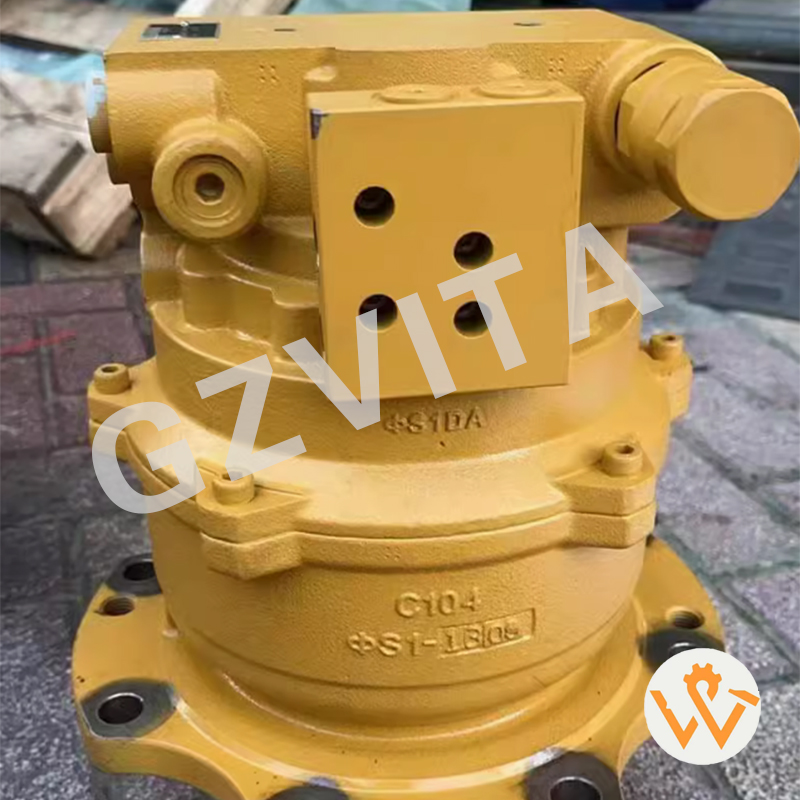

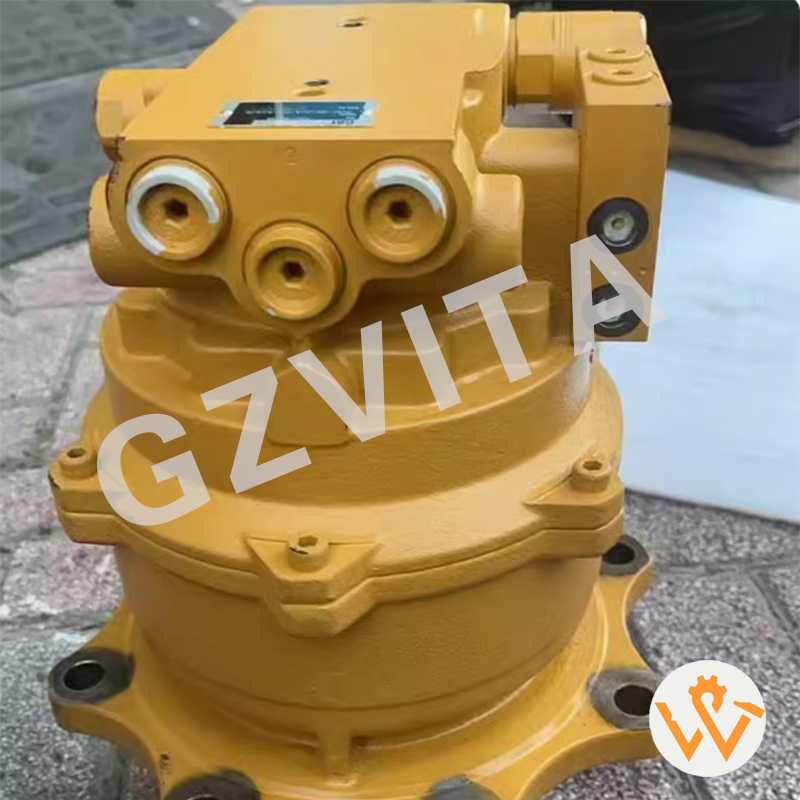

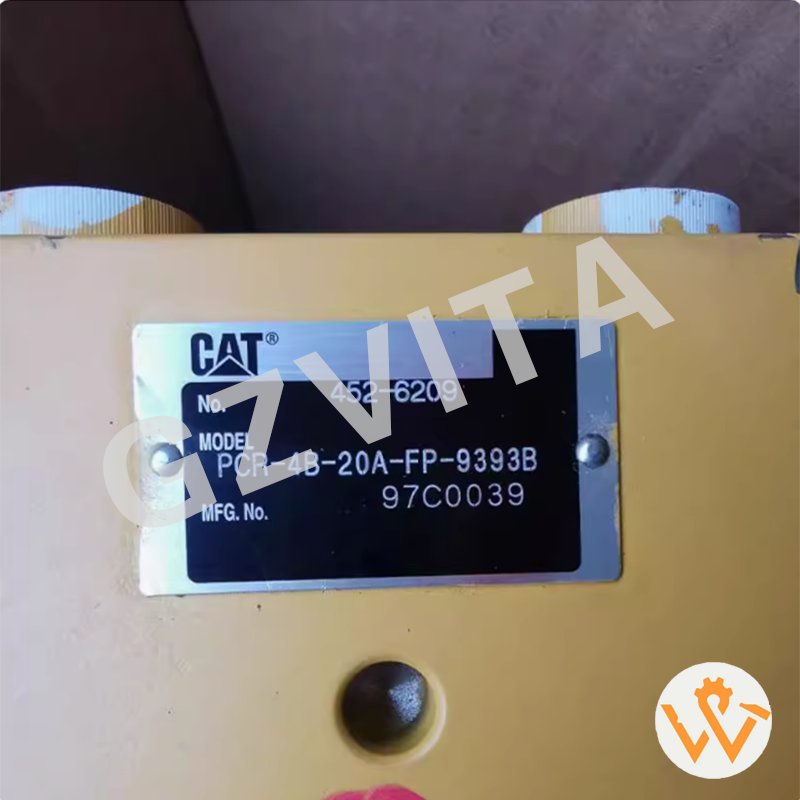

PCR-4B-20A 452-6208 452-6209 Excavator E306 305 306 305.5 Slewing Device Motor PCR-4B-20A SY55 SY60 SK55 PC50 SK60 Swing Motor

Operate within rated torque and speed limits​ specified in the manual.

Allow for a brief warm-up period​ at low speed before heavy swing operation.

Avoid sudden, violent directional changes​ when starting or stopping rotation.

Do not use the swing function​ to pry or drag heavy objects sideways.

Minimize continuous high-speed, full-load rotation​ for extended periods.

Keep the gearbox mounting bolts​ tight and check them periodically.

Ensure the parking brake is fully released​ before beginning swing operation.

Listen for unusual noises​ (grinding, knocking) during rotation and investigate immediately.

Monitor for excessive external heat​ on the gearbox housing during or after use.

Check for oil leaks​ around seals, gaskets, and inspection covers regularly.

Maintain the correct oil level​ and use only the recommended oil type and viscosity.

Change the gear oil​ at the specified service intervals.

Keep the breather vent​ clean and unobstructed.

Avoid striking the lower structure (gearbox/carriage)​ with obstacles during swinging.

Ensure smooth engagement​ by operating the swing control levers gradually.

On slopes, swing with extra caution​ and at reduced speed to maintain stability.

Do not use the swing function​ to help free the machine if it is stuck; use proper recovery techniques.

After operation on slopes,​ engage the parking brake before releasing the controls.

Prevent contamination​ by keeping the area around seals and fill plugs clean during maintenance.

Inspect the swing pinion and swing bearing gear teeth​ for damage during scheduled maintenance.

Check for excessive backlash or play​ in the swing mechanism.

Follow the manufacturer’s break-in procedure​ for a new or rebuilt减速机.

Avoid exposing the gearbox to direct, high-pressure water jets​ during cleaning.

Use the machine’s auto-lubrication system​ (if equipped) as scheduled for the swing bearing.

Shut down and inspect immediately​ if a loss of swing power or control is noticed.

Do not modify or disable any safety devices​ related to the swing system.

Ensure the swing path is clear​ of personnel and obstructions before rotating.

Balance loads​ and avoid excessive centrifugal force from off-center heavy loads.

Follow all safe shutdown procedures, including neutralizing swing controls and engaging the parking brake.

Refer to the official Caterpillar 305.5 operation and maintenance manual​ for complete, model-specific instructions and warnings.
